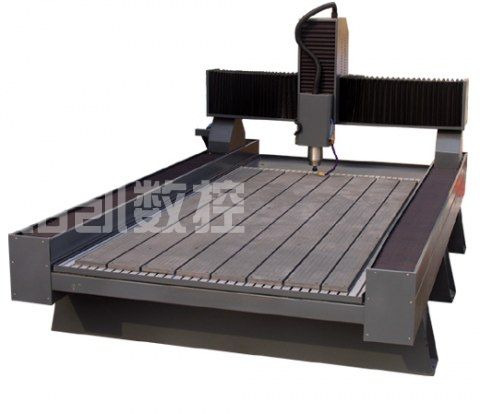

Mk-1325 CNC Marble Routers
  • Mk-1325 CNC Marble Routers
Product introduction
‖Profiled steel welded lathe bed,stabilizing treated under   artificial prescription ensures minimum distortion,excellent rigidity and vigorous strength.
‖Precise traveling of Y axis driven by double motors ensures stable performance of machine.
‖High precision rack gear transmission ensures high accuracy,fast speed and strong power.
‖Imported square linear guide rail ensures high accuracy,maximum work load and long service time.
‖Best mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
‖Configured with water tank and automatic cooling water supply system.
‖Overall dust-proof and water-proof design protects all moving parts of machine.

Applications
Natural marble, granite, artificial stone, tombstones, milepost, ceramic tile, glass and other materials the three-dimensional relief and line engraving, cutting, chamfering, drilling two-dimensional carving.

Parameters
Model LH6090 LH9015 LH9018 LH1224
工作行程Working Area(X×Y×Z) 600×900×300 900×1500×300 900×1800×300 1200×2400×300
雕刻深度Engraving depth 150mm 150mm 150mm 150mm
最大雕刻速度Max engraving speed 3000mm/min 3000mm/min 3000mm/min 3000mm/min
加工精度Traveling Accuracy <0.05/300min <0.05/300min <0.05/300min <0.05/300min
雕刻指令Working Dictate G代码G code G代码G code G代码G code G代码G code
主轴Spindle 3.0kw水冷主轴
3.0kwWater Cooling
3.0kw水冷主轴
3.0kwWaterCooling
3.0kw水冷主轴
3.0kwWater Cooling
3.0kw水冷主轴
3.0kwWater Cooling
刀具直径Collect Φ3.175mm,Φ6mm,Φ12.7mm Φ3.175mm,Φ6mm,Φ12.7mm Φ3.175mm,Φ6mm,Φ12.7mm Φ3.175mm,Φ6mm,Φ12.7mm
XYZ导轨XYZ Guide Rails 方形直线导轨
Linear Square Rail
方形直线导轨
Linear Square Rail
方形直线导轨
Linear Square Rail
方形直线导轨
Linear Square Rail
传动方式 Transmission XY高精级齿轮齿条Rack Gear of X.Y    Z轴滚珠丝杆传动Ball Screw of Z axis
